Basic Specifications
Installation
Fast Installation
Main Material
Sandwich Panel
Certification
CE, ISO Certified
Specification
5990*2990*2880 mm
Capacity
50,000 pieces/Year
Feature
Earthquake Resistant, Easily Movable, Thermal Insulation, Wind Resistance
Product Introduction

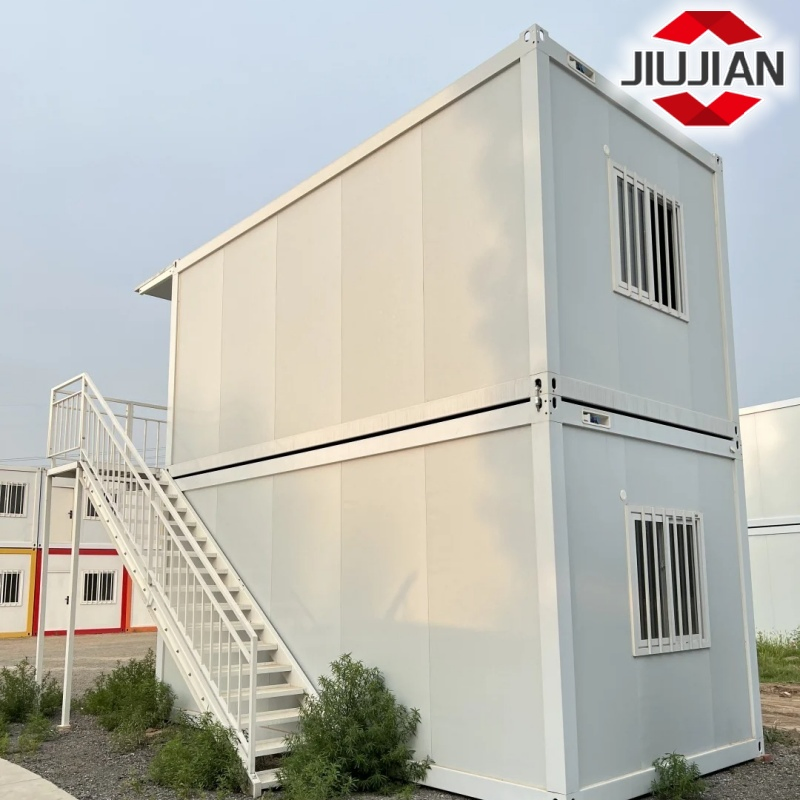

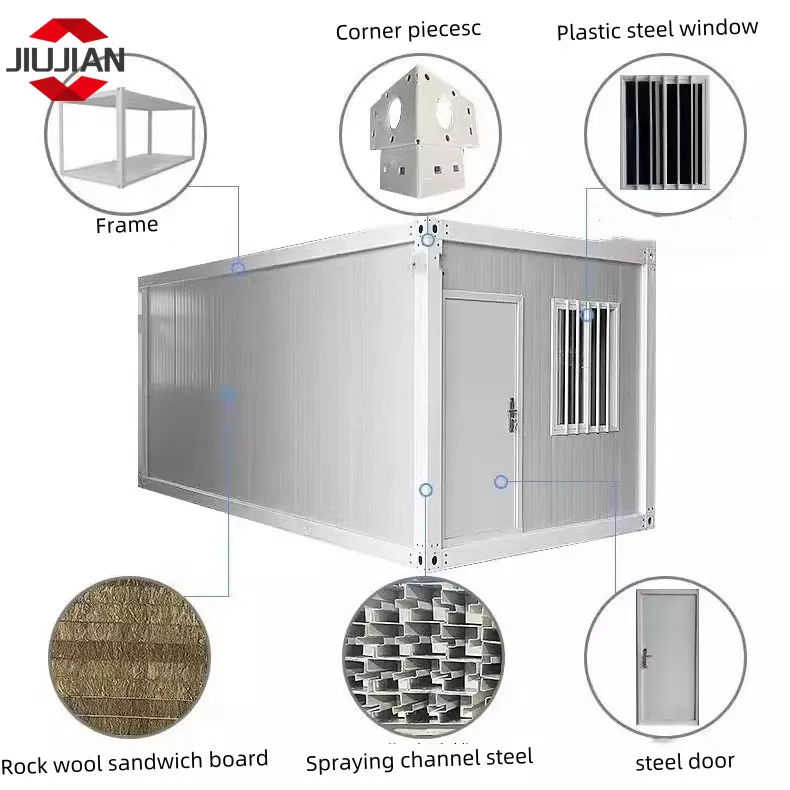

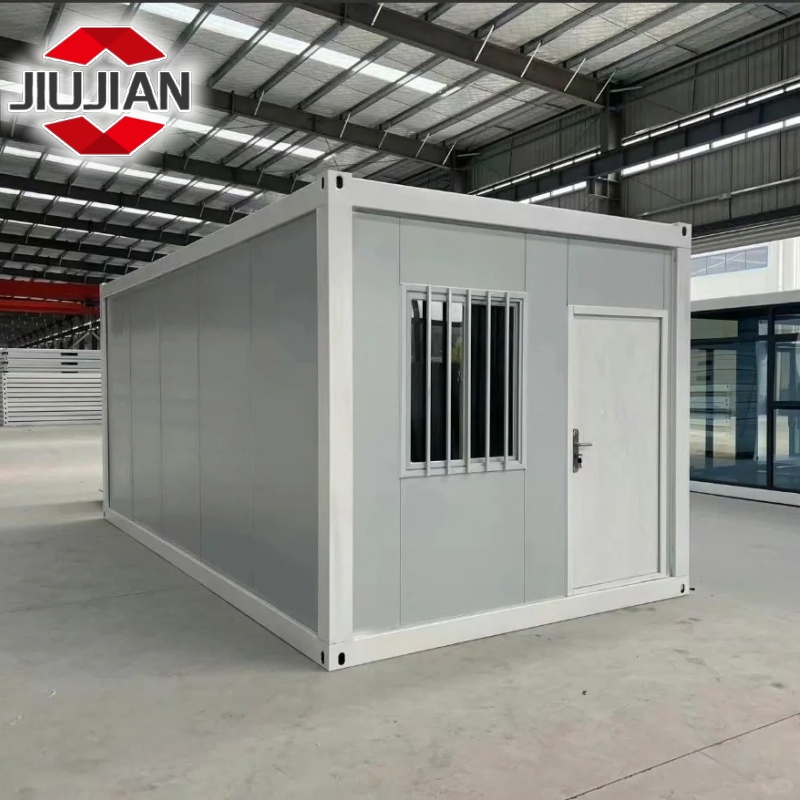

Flat Pack Detachable Container house is made of steel as the frame, sandwich panel as the wall material, and the structure is mainly composed of top frame components, corner column systems and base components. It is manufactured in our factory and then transported to the customer's location for assembly. We can also make two or three story, which are bolted together, which is safe and stable. This flat pack container house can also be made into a folding container house, which is very quick to install and easy to transport, making it an environmentally friendly and economical mobile house.
Technical Specifications
| Category |
Component |
Details |
| Dimensions & Weight |

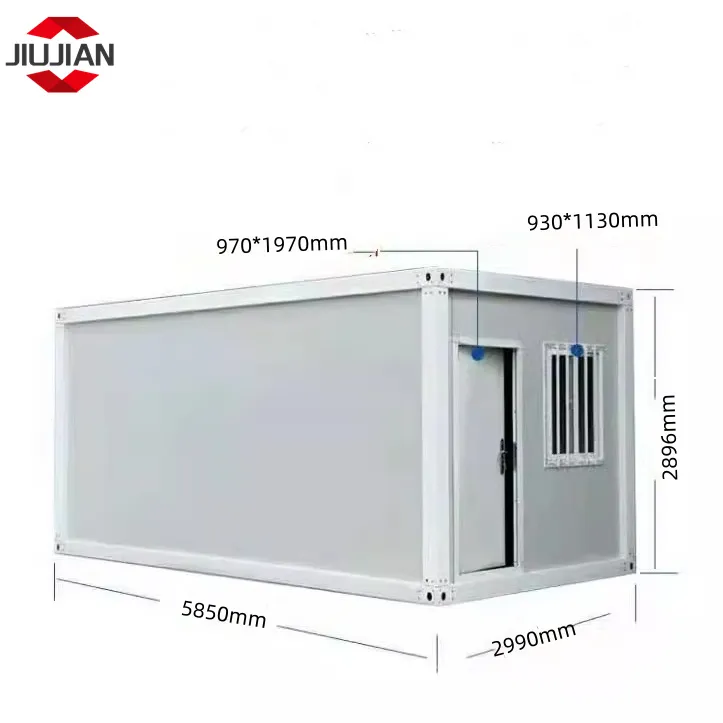

Size (mm) |
5850*2430*2896 |
| Weight |
1500KG |
| Loading Capacity |
40'HQ: 16pcs (50mm panel) / 13pcs (75mm panel) |
| Frame Structure |
Top Frame |
160 mm width, 3mm Hanging heads, 80C section steel |
| Column |
160*160*2510mm, 2.3mm thickness |
| Bottom Frame |
Square tubes 100*50*1.0mm, 3mm Hanging heads |
| Roof System |
Insulation |
50/75mm EPS panel or fireproof rock wool panel |
| Ceiling |
0.3mm 831 Suspended ceiling panels |
| Wall Panels |
Material |
50/75/100mm EPS/Rock wool panel, 0.3mm steel plywood |
| Ground |
Flooring |
18mm Cement sanded board + PVC/Floor leather decorative surface |
| Electricity |
Configuration |
Main wire 6㎡, AC 4㎡, Sockets 2.5㎡, LED strip lights |
Key Advantages
-
⚡
Rapid Deployment: Ready for use with minimal assembly work.
-
🛡️
Durability: Service life exceeds 30 years with anti-corrosive structure.
-
❄️
Insulation: Excellent waterproof, sound-insulated, and heat preservation properties.
-
🎨
Customizable: Layout and colors can be tailored to specific project needs.
-
🚚
Portability: International standard dimensions, convenient for moving and transporting.
-
🌿
Eco-Friendly: Reusable materials and energy-efficient design.

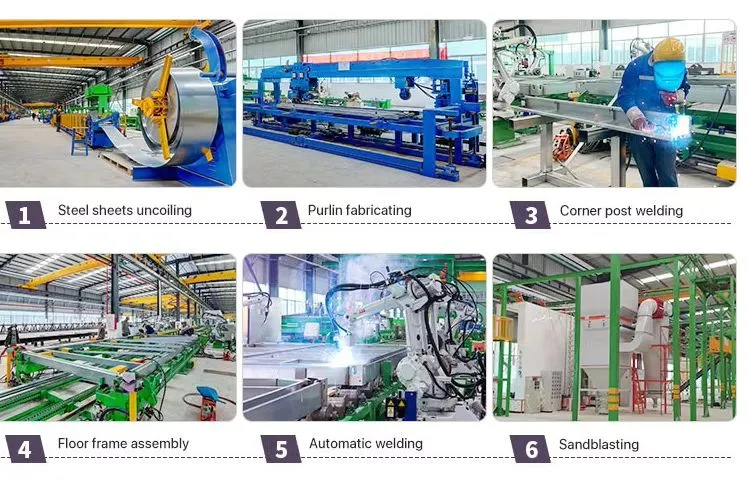

Product Process & Capabilities
The main products include Flat Pack Container Houses, Folding Container Houses, Detachable Container Houses, Expandable Modular House, Apple cabins, Space capsule, Steel structure products, etc. The whole process uses automatic control to ensure high control accuracy and product quality.
Frequently Asked Questions
How long does it take to install a flat pack container house?

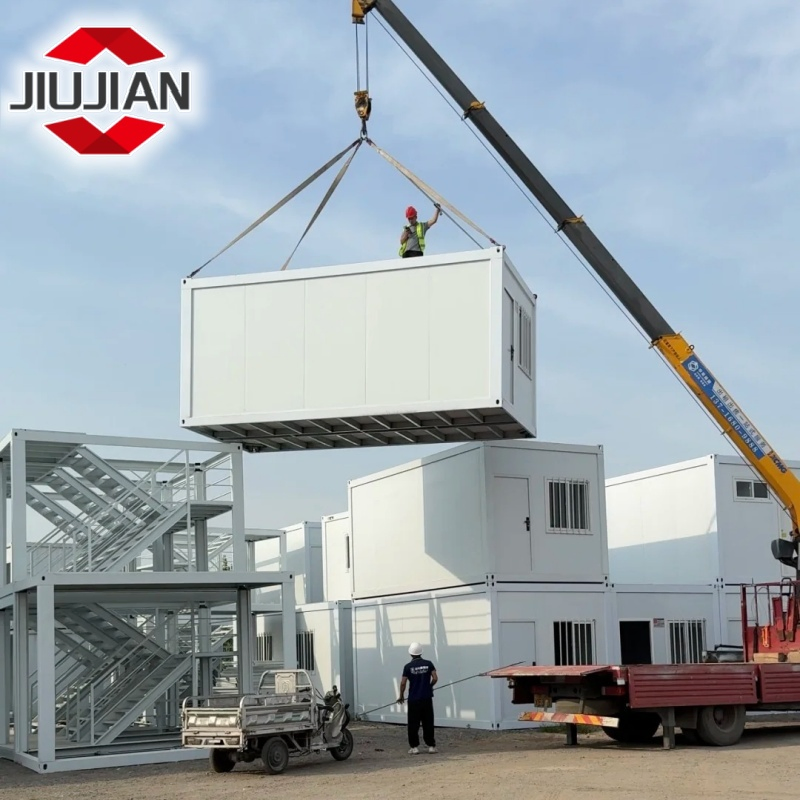

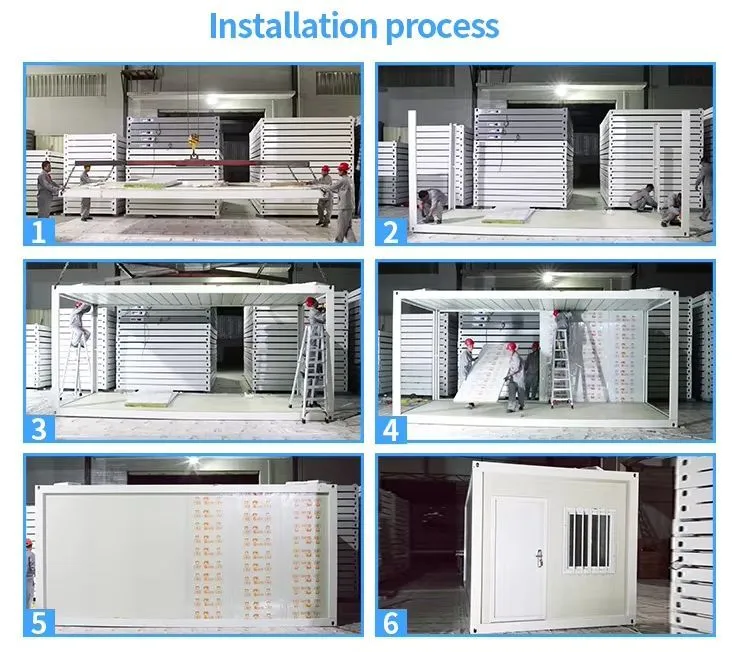

Installation is highly efficient. A standard unit can typically be assembled in a few hours with a small crew, as it uses a bolt-connected modular system.
Are the container houses weather-resistant?
Yes, our houses are designed to be earthquake-resistant, wind-resistant, and include special waterproof methods for the roof and walls to ensure safety in various climates.

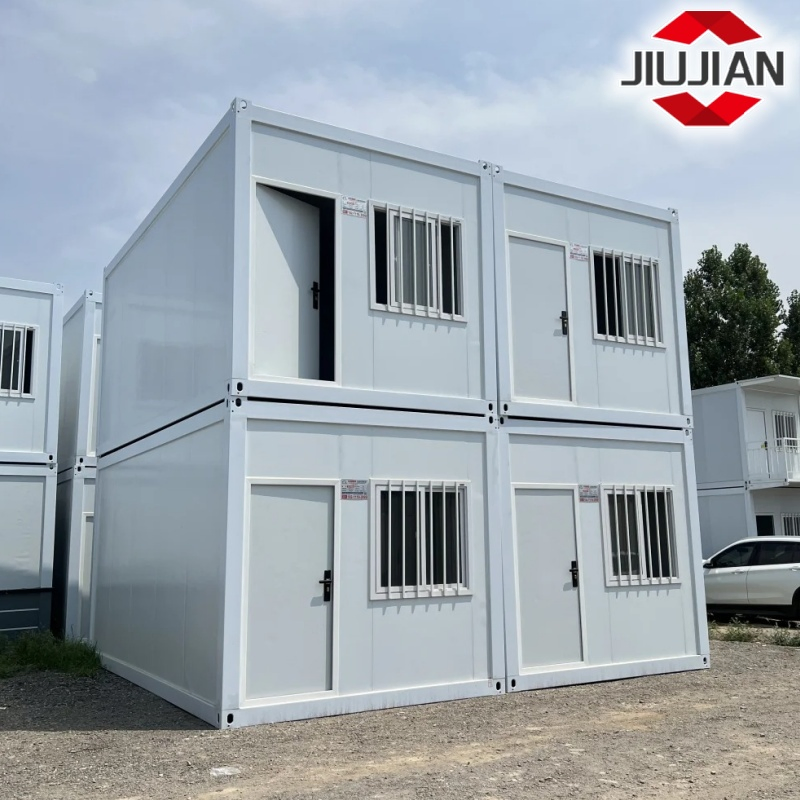

Can these units be used for multi-story buildings?
Absolutely. Our flat pack containers are designed to be stackable and can be bolted together to create safe and stable two or three-story structures.
What materials are used for insulation?
We offer multiple options including EPS (Expanded Polystyrene), fireproof Rock Wool, Glass Fiber, PU, and XPS sandwich panels to meet different thermal requirements.
Is the interior electrical system included?
Yes, the houses come equipped with a complete electrical package including wiring, sockets, LED strip lights, and a distribution box with protectors.
What is the estimated service life of the product?
With proper maintenance, our detachable container houses have a life span of more than 15 to 30 years, depending on the specific model and environmental conditions.
